DNMG 432-NF IC9250

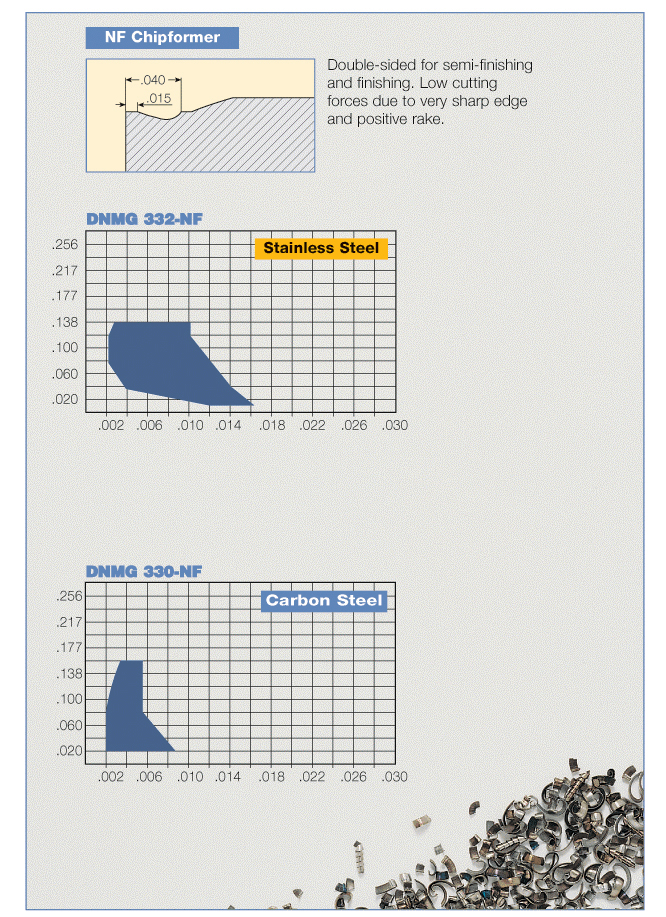

Double-sided 55° rhombic insert, used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake.
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.039″ |
| Application | | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Style | DNMG | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |

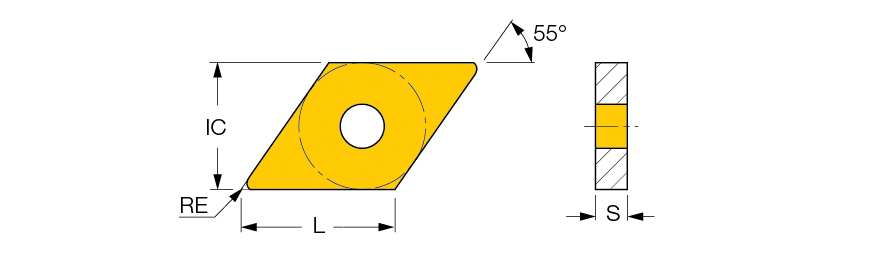

| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Size | 150 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.61″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | NF |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 55° Rhombic |
| Coating | TiCN+alpha Al2O3+TiN | Series/List # | ISOI |
| Grade | IC9250 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided 55° rhombic insert, used for semi-finishing and finishing applications. Low cutting forces due to very sharp edge and positive rake. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
LocalField10
0
Package Weight
0.03
