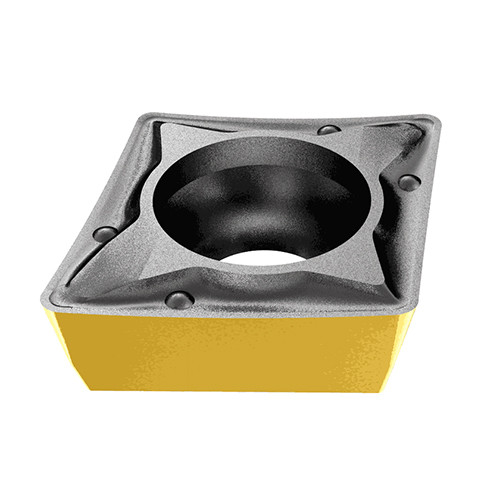

CPMT 3-1-PF IC830
80° rhombic inserts with 11° positive flank for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces.
Price: Log in For Price

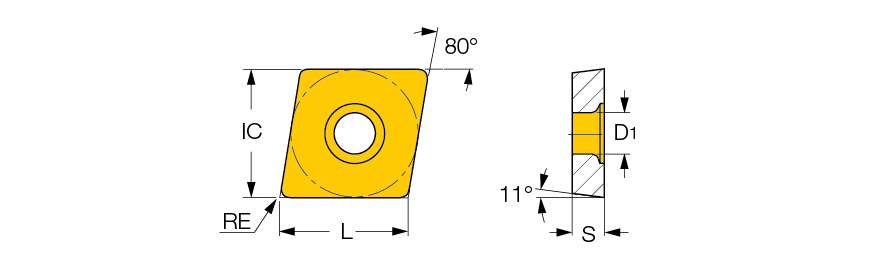

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.02″ |
| Application | | Ext. 80° Diamond 95° Approach | Int. 80° Diamond 95° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | CPMT | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.0157″ | Max. Turning Feed (ft(max)) | 0.0138 ″/rev |
| Insert Size | 09T | Clearance Angle Major (AN) | 11 Degrees |
| Cutting Edge Length (L) | 0.374″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.156″ | Chip Breaker Type | PF |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 80° Rhombic |
| Coating | AlTiN+TiN | Series/List # | ISOI |
| Grade | IC830 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Model No | 8866423 |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | 80° rhombic inserts with 11° positive flank for semi-finishing and finishing applications on soft materials and exotic alloys. Positive rake angle, low cutting forces. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
LocalField10
0
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.01
