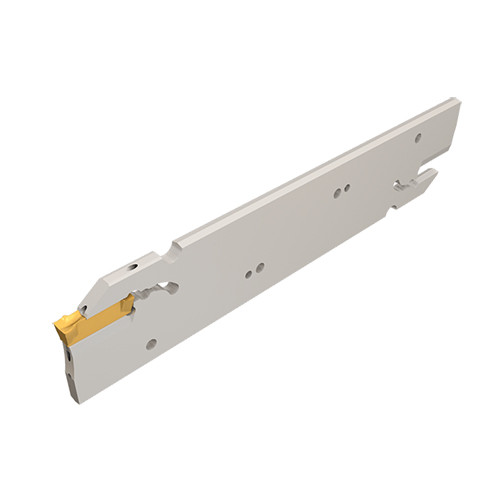

DGFH 32-2-JHP
Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts.
Price: Log in For Price

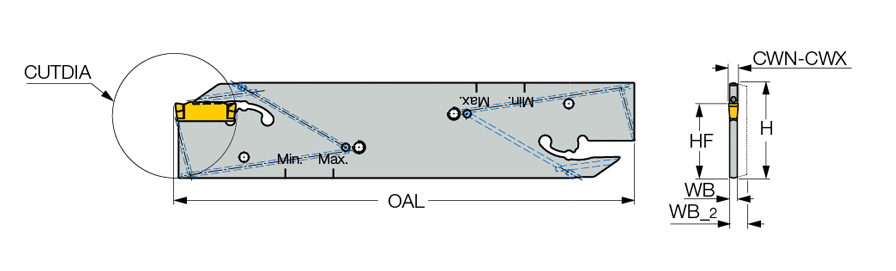

| Shank Height (H) | 1.26″ | Shank Standard | Square |
| Body Width (WB) | 0.071″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.075″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.098″ | Work Piece Parting Diameter Maximum (CUTDIA) | 1.535″ |
| Overall Length (OAL) | 5.906″ | Cutting Direction (HAND) | Neutral |
| Functional Length (LF) | 5.906″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.098″ |
| Application | | Ext. Grooving | Parting | | Tool Assembly Length (LTA) | 1.173″ |
| Number of Pocket (NOP) | 2 |
Product Features
| Family Description | Parting and grooving blades with channels for low and high-pressure coolant, carrying DO-GRIP inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.238
