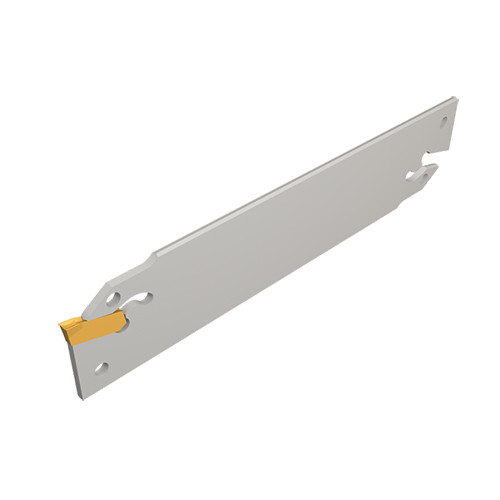

CGHN 32-3DG
Parting Off Holder; 5.906″ OAL × 0.11″ CW Min. × 0.157″ CW Max. ; Steel
Price: Log in For Price

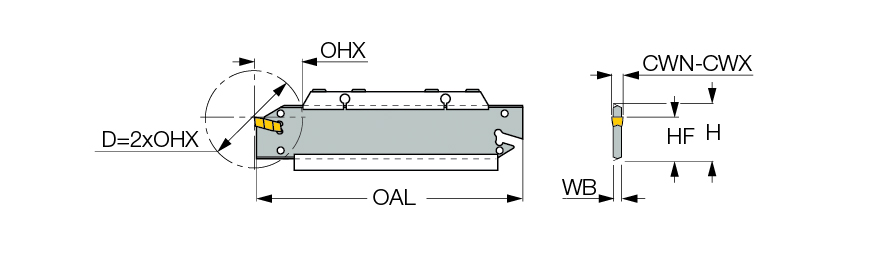

| Shank Height (H) | 1.26″ | Shank Standard | Square |
| Body Width (WB) | 0.094″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.11″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.157″ | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 5.906″ | Measurement Type | Inch |
| Cutting Position | External | Body Width_2 (WB_2) | 0.094″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | | Tool Assembly Length (LTA) | 1.482″ |
| Number of Pocket (NOP) | 2 |
Product Features
| Family Description | CUT-GRIP double-ended blades for external grooving and turning self-clamped inserts. | Country of Origin | Israel |
| Remarks | DO-GRIP clamping insert is self-retained for long overhang When using TIP inserts, toolholder seat needs to be modified according to insert profile to ensure clearance When using a double-ended insert, grooving depth is limited by the insert When using GIVR/L inserts, tool holder's seat needs to be modified |
Shipping Info
LocalField10
0
Package Weight
0.211
