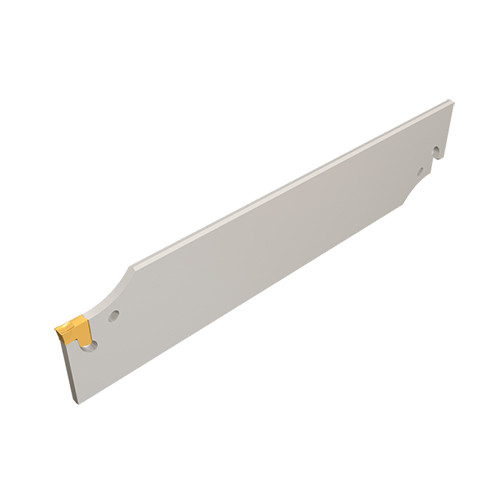

TGFH 53K-9
Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life.
Price: Log in For Price

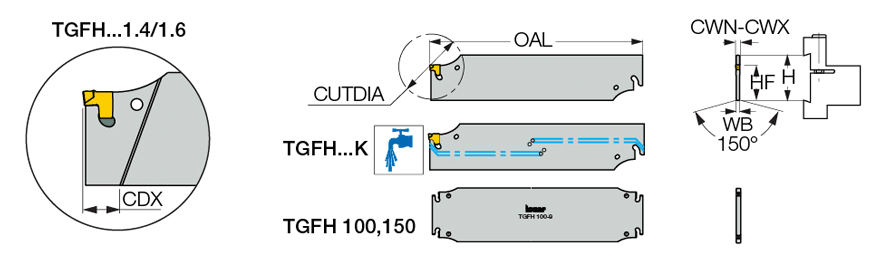

| Shank Height (H) | 2.071″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.343″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Maximum (CWX) | 0.394″ | Work Piece Parting Diameter Maximum (CUTDIA) | 8.465″ |
| Overall Length (OAL) | 10.236″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Body Width_2 (WB_2) | 0.323″ |
| Number of Pocket (NOP) | 2 | Tool Assembly Length (LTA) | 4.232″ |
| Shank Standard | Square |
Product Features
| Family Description | Very rigid clamping. Enables machining at very high feed rates and provides excellent straightness and surface finish. Recommended for parting large diameter parts and for interrupted cuts. Excellent tool and pocket life. | Country of Origin | Israel |

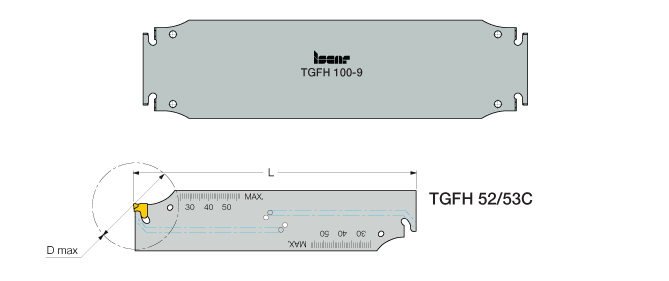

| Remarks | For TGFH ..C-. and for TGFH 100-9 drawings, click More Info |
Shipping Info
Package Length
10.50000
Package Width
2.50000
Package Height
1.00000
Package Weight
1.775
