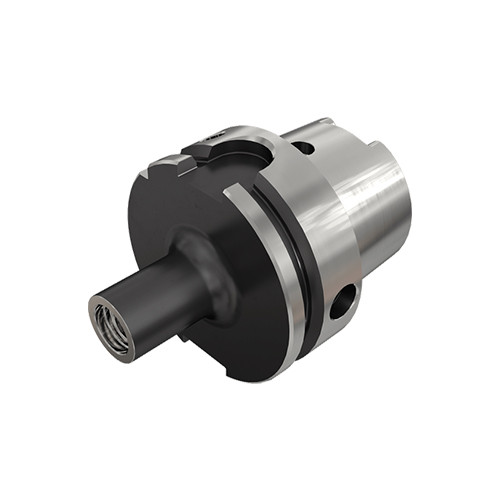

MM S-A-H050-HSK A63-T08

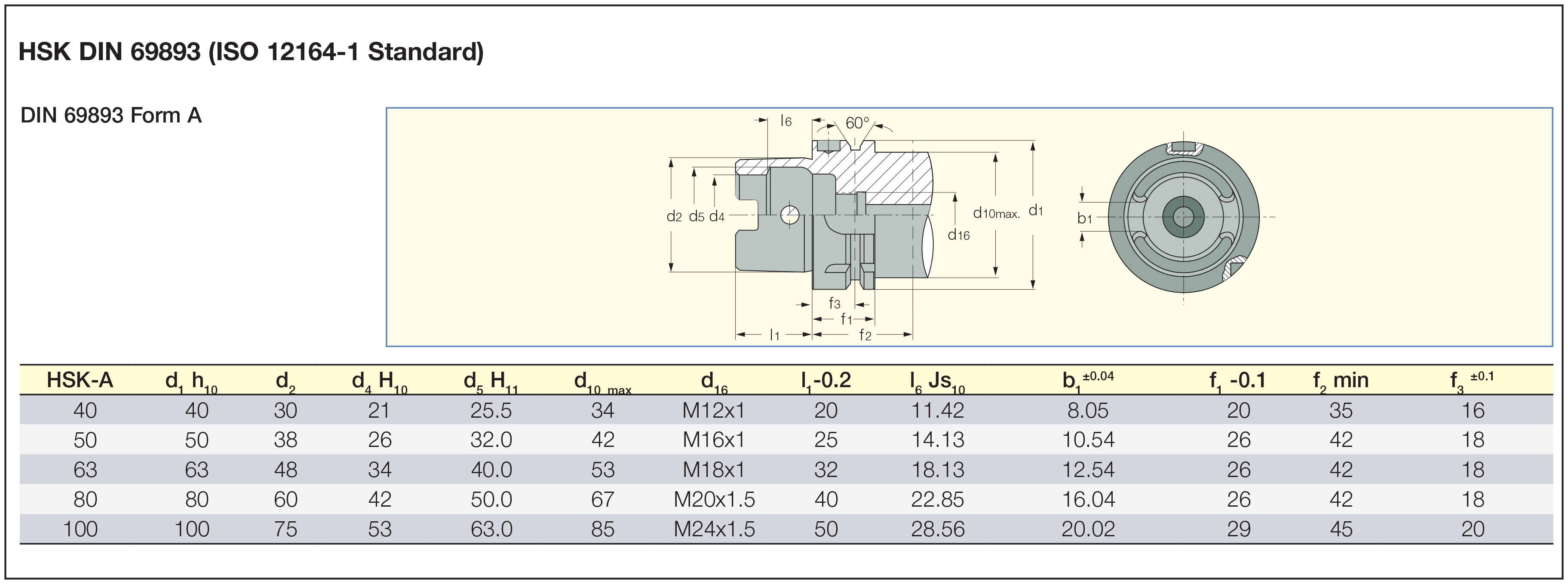

MULTI-MASTER threaded connection shanks with an integral HSK DIN 69893 form A tapered adaptation.
Price: Log in For Price

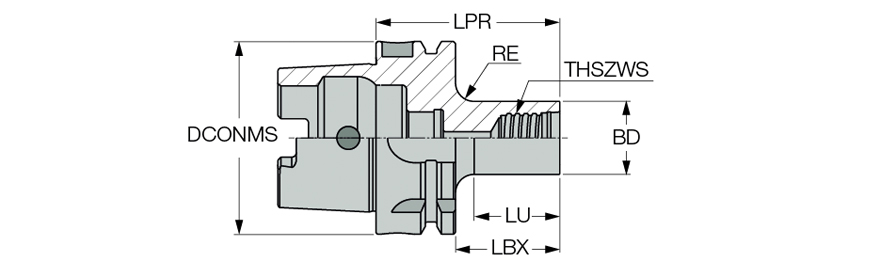

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 | Tool Type | HSK |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Diameter (BD) | 0.457″ |
| Material | Carbide | Weight of Item (WT) | 1.58 Lbs |
| Overall Length (OAL) | 0.709″ | Measurement Type | Inch |
| Shank Size (SS) | 63 | Body Material | Steel |
| Body Length Maximum (LBX) | 0.94″ | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | MULTI-MASTER threaded connection shanks with an integral HSK DIN 69893 form A tapered adaptation. | Country of Origin | Israel |
| Remarks | Do not apply lubricant to the threaded connection For adaptation options, click on More Info |
Shipping Info
Package Weight
1.645
