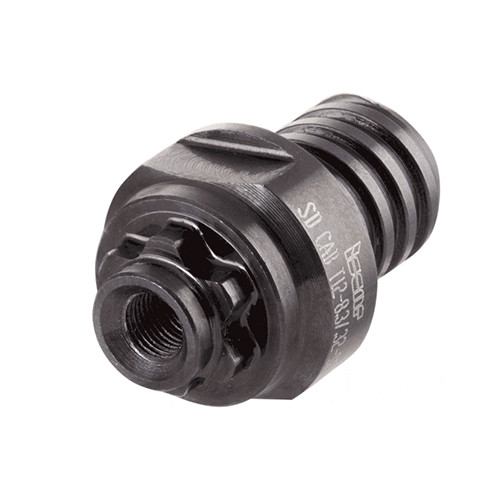

SD CAB T10-14/0.55-SP11
Adapters for connecting SD solid carbide T-slot milling heads and MULTI-MASTER shanks.
Price: Log in For Price

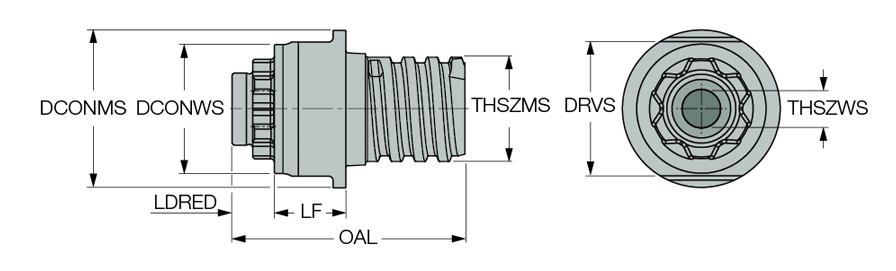

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M4x0.5 | Body Diameter (BD) | 0.433″ |
| Connection Diameter Machine Side (DCONMS) | 0.598″ | Weight of Item (WT) | 0.05 Lbs |
| Material | Carbide | Connection Thread Nominal Size Machine Side (THSZMS) | T10 |
| Overall Length (OAL) | 1.148″ | Drive Size (DRVS) | 0.512″ |
| Body Length Maximum (LBX) | 0.15″ | Measurement Type | Inch |
| Tool Type | Interchangeable Milling Connectors | Body Material | Steel |
Product Features
| Family Description | Adapters for connecting SD solid carbide T-slot milling heads and MULTI-MASTER shanks. | Country of Origin | Israel |

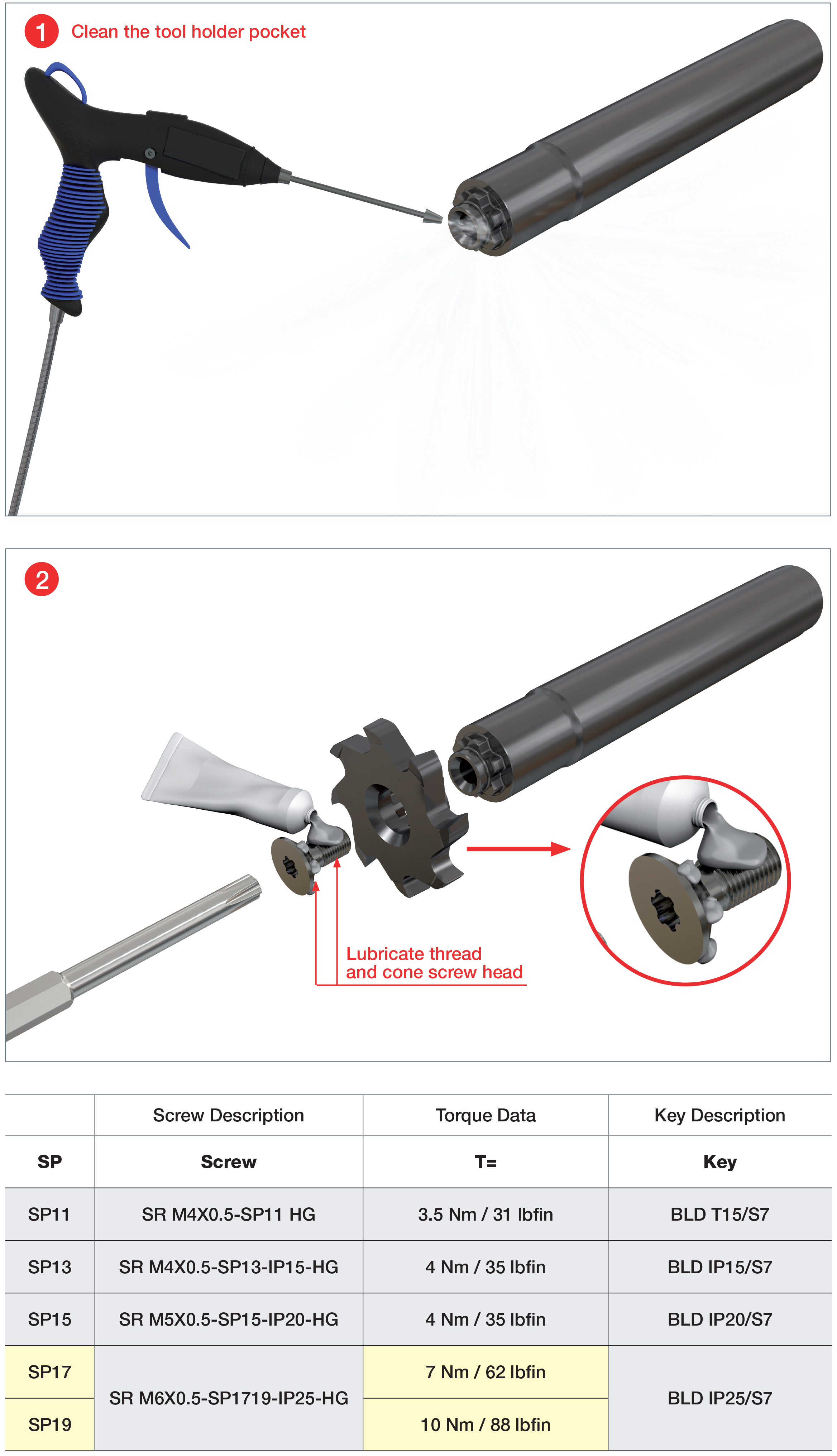

| Remarks | Apply lubricant to the screw head and threads |
Shipping Info
Package Weight
0.240
