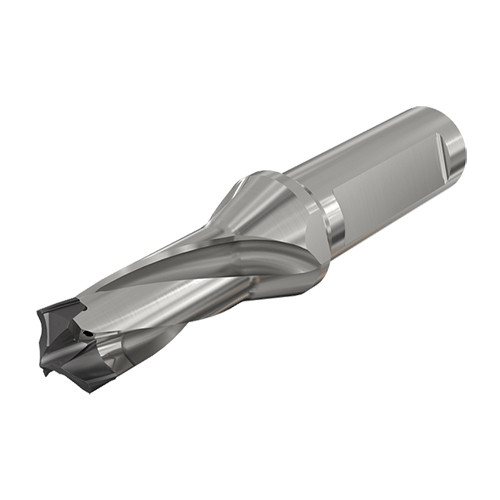

D3N 200-030-25A-1.5D
Exchangeable head 3 flute drills with internal coolant holes and one flat shank, drilling depth 1.5xD
Price: Log in For Price

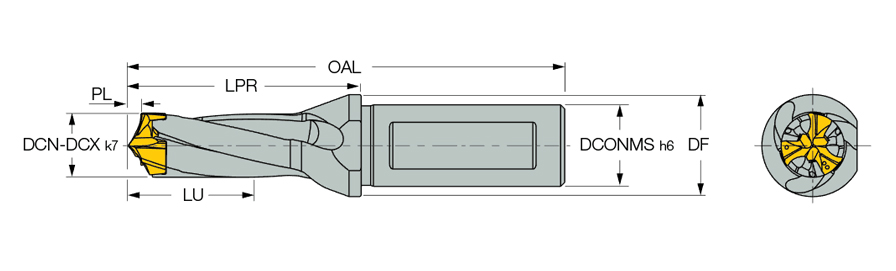

| Cutting Diameter (DC) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 34.32 mm | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | H3P 200 |
| Insert Seat Size Code (SSC) | 20 | Point Length (PL) | 4.32 mm |
| Cutting Diameter Minimum (DCN) | 20 mm | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 20.9 mm | Angle | 140 Degrees |
| Protruding Length (LPR) | 71.2 mm | Body Material | Steel |
| Overall Length (OAL) | 127.24 mm | Flange Diameter (DF) | 32 mm |
| Shank Length (LS) | 56 mm |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and one flat shank, drilling depth 1.5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
0.838
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
