DSM 120-060-16A-5D
CHAMDRILLJET 5xD drills with indexable heads and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price

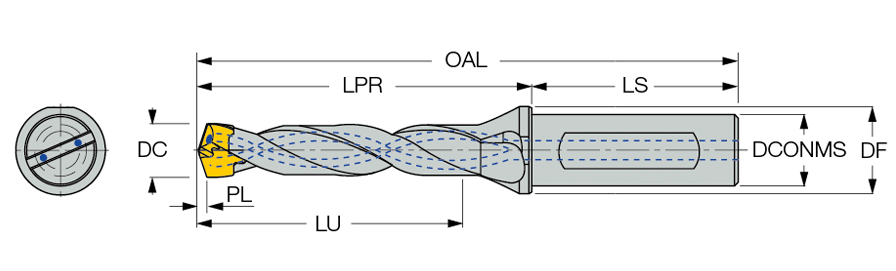

| Cutting Diameter (DC) | 12 mm | Shank Length (LS) | 48 mm |
| Usable Length (LU) | 60 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Length Group | 5D | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDP 120 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 12.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 12 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 12.9 mm | Flange Diameter (DF) | 20 mm |
| Protruding Length (LPR) | 78.9 mm | Decimal Equivalent | 12 mm |
| Functional Length (LF) | 145 mm | Body Diameter Reduced (BDRED) | 20 mm |
| Overall Length (OAL) | 146.9 mm |
Product Features
| Family Description | CHAMDRILLJET 5xD drills with indexable heads and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions. Do not mount smaller drilling heads than specified range for drill body. |
Shipping Info
Package Weight
0.300
