DFN 380-190-32A-5D-IQ

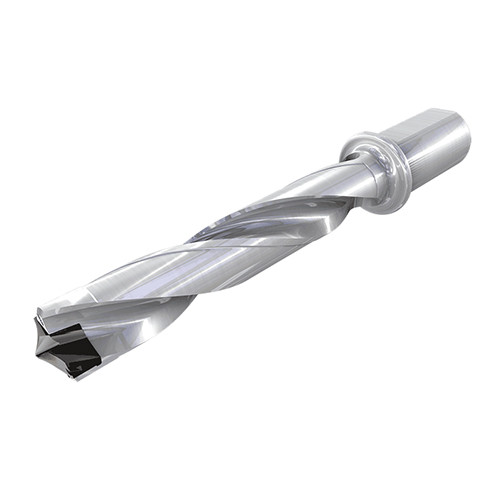

Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 5xD
Price: Log in For Price

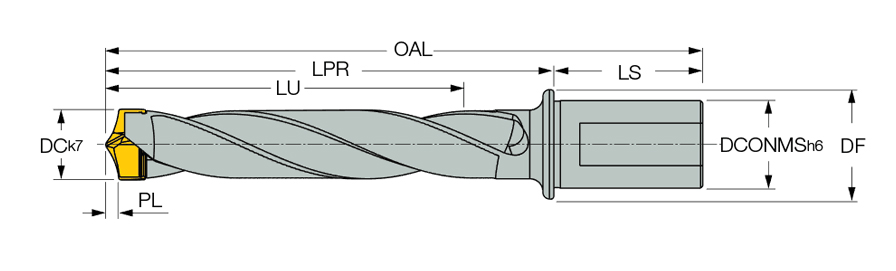

| Cutting Diameter (DC) | 38 mm | Shank Length (LS) | 60 mm |
| Usable Length (LU) | 190 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | HFP 380 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Point Length (PL) | 8.2 mm |
| Insert Seat Size Code (SSC) | 38.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 38 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 38.9 mm | Body Material | Steel |
| Protruding Length (LPR) | 233.8 mm | Flange Diameter (DF) | 42 mm |
| Functional Length (LF) | 225.6 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 293.8 mm |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
LocalField10
0
Package Weight
6.062
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
