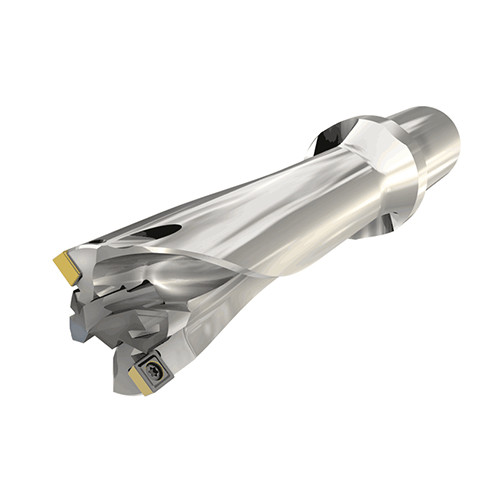

MNC 330-165 A32-175-09-5D
Large diameter full effective indexable drills with a pilot drilling head and one flat shanks. Drilling depth 5xD. High drilling rates, high accuracy and surface finish.
Price: Log in For Price

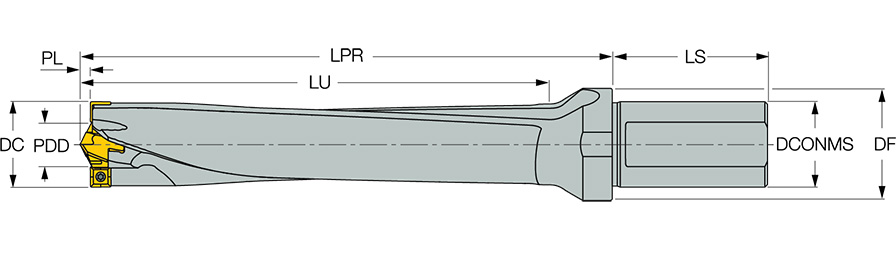

| Cutting Diameter (DC) | 33 mm | Measurement Type | Metric |
| Usable Length (LU) | 168.64 mm | Master Insert Identification (MIID) | SOGT 09T306-W |
| Application | | Drilling | | Series/List # | STAW |
| Tool Type | Indexable Insert Drills | Angle | 140 Degrees |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Protruding Length (LPR) | 203.6 mm | Flange Diameter (DF) | 42 mm |
| Overall Length (OAL) | 263.65 mm | Body Diameter (BD) | 17.5 mm |
| Shank Length (LS) | 60 mm | Body Diameter Reduced (BDRED) | 42 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Shank Diameter Tolerance (TCDMM) | h6 |
| Cutting Item Count (CICT) | 1 |
Product Features
| Family Description | Large diameter full effective indexable drills with a pilot drilling head and one flat shanks. Drilling depth 5xD. High drilling rates, high accuracy and surface finish. | Country of Origin | Israel |
| Remarks | Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions Intermediate sizes are available on request |
Shipping Info
Package Weight
2.661

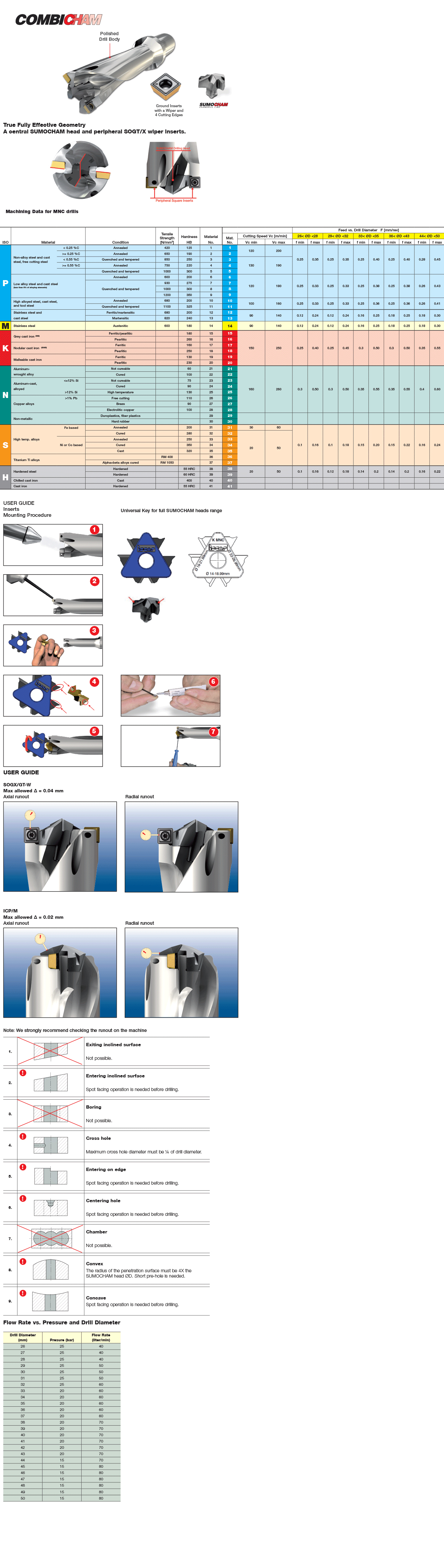

Related Documentation
Hole tolerance: D+0.10/-0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions.
