DCN 1024-820-125R-8D

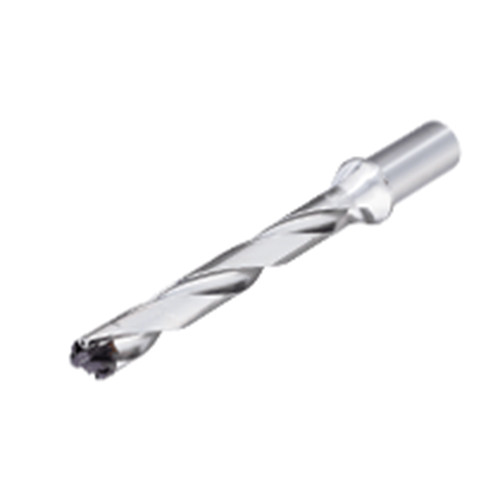

SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price

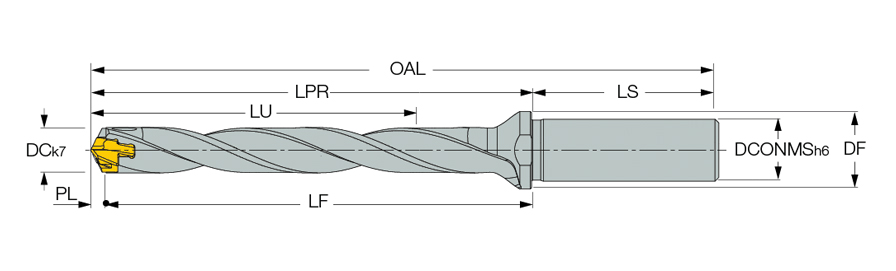

| Cutting Diameter (DC) | 1.024″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 8.344″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 260 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.156″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 26.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 1.024″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.062″ | Flange Diameter (DF) | 1.653″ |
| Protruding Length (LPR) | 9.81″ | Decimal Equivalent | 1.024″ |
| Functional Length (LF) | 9.624″ | Body Diameter Reduced (BDRED) | 1.653″ |
| Overall Length (OAL) | 12.17″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 2.36″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 8xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. Not required if HCP or QCP drilling head is used Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
LocalField10
0
Package Weight
2.319
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
