DCN 320-096-40A-3D

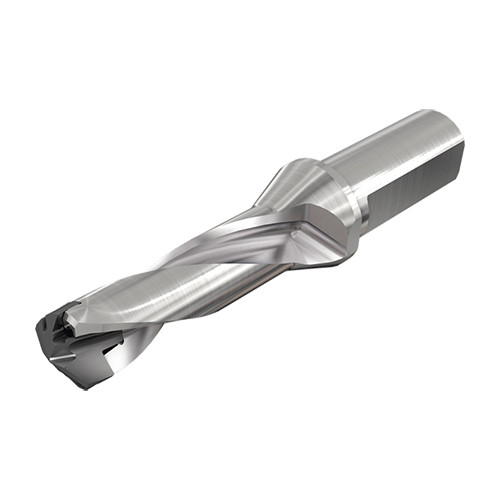

SUMOCHAM 3xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups.
Price: Log in For Price

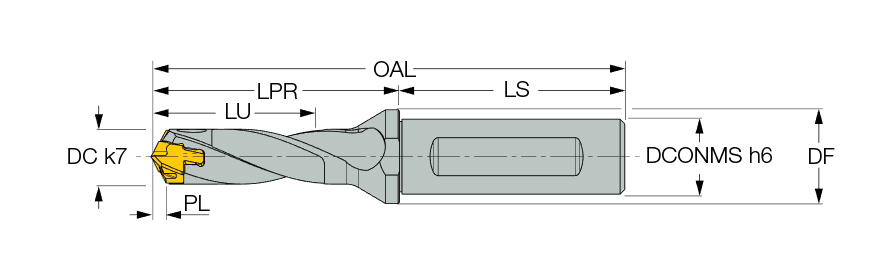

| Cutting Diameter (DC) | 32 mm | Shank Length (LS) | 68 mm |
| Usable Length (LU) | 100.86 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Weldon | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 320 |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Point Length (PL) | 4.86 mm |
| Insert Seat Size Code (SSC) | 32.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 32 mm | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 32.99 mm | Body Material | Steel |
| Protruding Length (LPR) | 146.5 mm | Flange Diameter (DF) | 50 mm |
| Functional Length (LF) | 140.68 mm | Body Diameter Reduced (BDRED) | 50 mm |
| Overall Length (OAL) | 214.54 mm | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 3xD drills with exchangeable heads, one flat shank and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Package Weight
2.989
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
