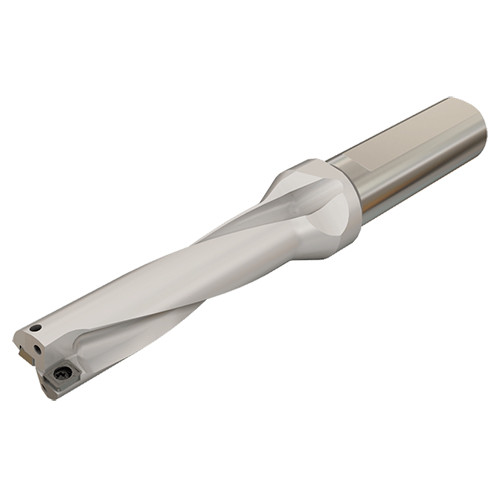

DR029-116-32-09-4D-N
DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD.
Price: Log in For Price

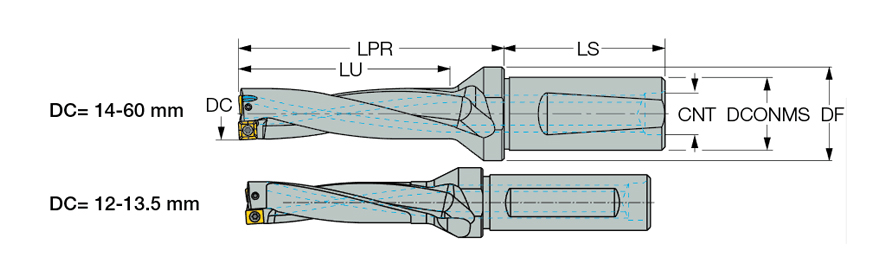

| Cutting Diameter (DC) | 29 mm | Overall Length (OAL) | 206 mm |
| Usable Length (LU) | 116 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Cutting Diameter Maximum (DCX) | 31.5 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Flange Diameter (DF) | 42 mm |
| Shank Size (SS) | 1″ | Measurement Type | Metric |
| Tool Type | indexable head drills | Master Insert Identification (MIID) | SOMT 09T306-DT |
| Protruding Length (LPR) | 148 mm | Body Material | Steel |
| Shank Length (LS) | 58 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 147.13 mm |
Product Features
| Family Description | DR-TWIST indexable square insert drills with coolant holes. Drilling depth 4xD. | Country of Origin | Israel |
| Remarks | Hole tolerance D+0.35/-0.05 in average conditions applied. It can be higher or lower according to machine and tooling conditions |
Shipping Info
Package Weight
1.874
Related Documentation
Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
