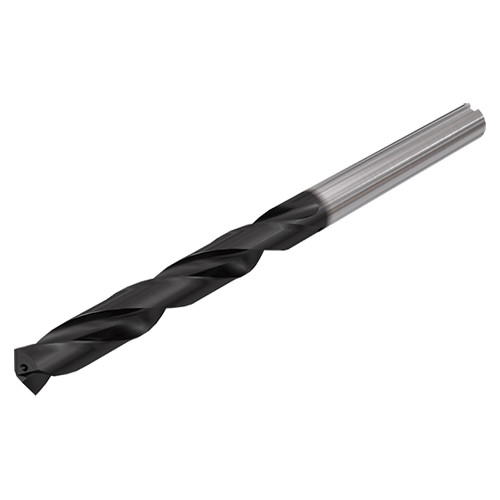

SCD 110-056-120 ACP5N IC908
DIN 6537 solid carbide drills with coolant holes, drilling depth 5xD.
Price: Log in For Price

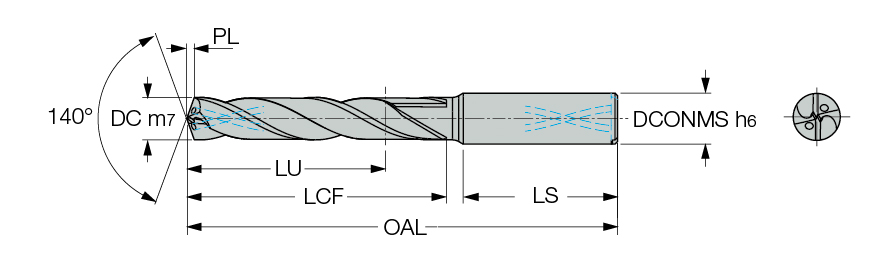

| Drill Bit Size / Cutting Diameter (DC) | 11 mm | Grade | IC908 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11 mm | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 56 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 71 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Overall Length (OAL) | 118 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 45 mm | Body Material | Carbide |
| Shape | Solid Carbide | Connection Code Machine Side (CCMS) | Cylindrical |
| Cutting Edge Material | Carbide | Shank Diameter Tolerance (TCDMM) | h6 |
| Tool Type | solid carbide Drills |
Product Features
| Family Description | DIN 6537 solid carbide drills with coolant holes, drilling depth 5xD. | Country of Origin | Korea |
Shipping Info
Package Weight
0.291
