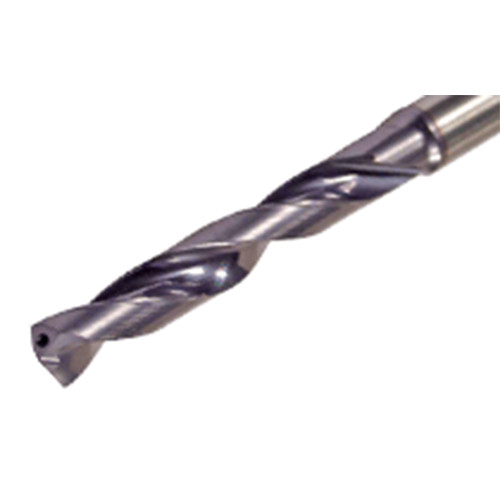

SCD 157-063-160 ACP5 IC908
Solid carbide drills with coolant holes. Drilling depth 5xD.
Price: Log in For Price

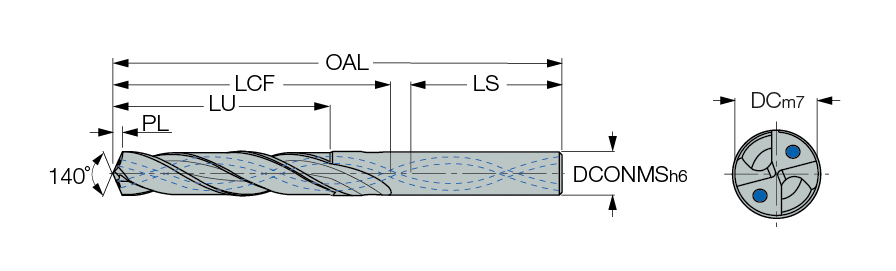

| Drill Bit Size / Cutting Diameter (DC) | 15.7 mm | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 15.7 mm | Grade | IC908 |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2464 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 63 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 83 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Overall Length (OAL) | 133 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 45 mm | Body Material | Carbide |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Shape | Jobber Drill | Shank Diameter Tolerance (TCDMM) | h6 |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Solid carbide drills with coolant holes. Drilling depth 5xD. | Country of Origin | Korea |
Shipping Info
Package Weight
0.639
