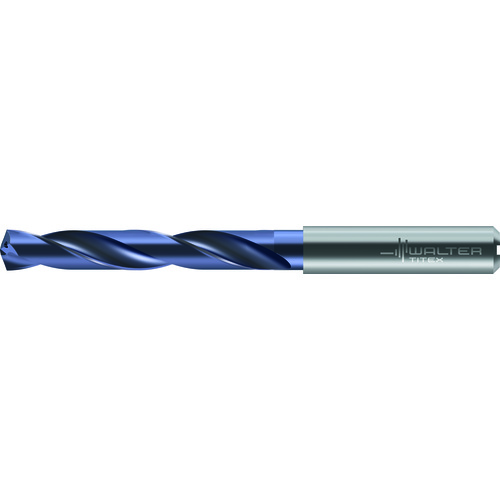

14.1 mm Dia. × 16 mm Shank × 83 mm Flute Length × 133 mm OAL, 5xD, 140°, 2xD Flute, Coolant Thru, DIN 6537 L, Round Solid Carbide Drill DC150-05-14.100A1-WJ30RE
| Drill Bit Size / Cutting Diameter (DC) | 14.1 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5551″ | Tool Type | Solid Carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.1 mm | Grade | WJ30RE |
| Length Group | 5xD | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Series/List # | DC150-WJ30RE |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 63 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 83 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 133 mm |
| Shank Type | Round | Flute Count (NOF) | 2 |
| Shank Standard | DIN 6537 L |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
0.5555
