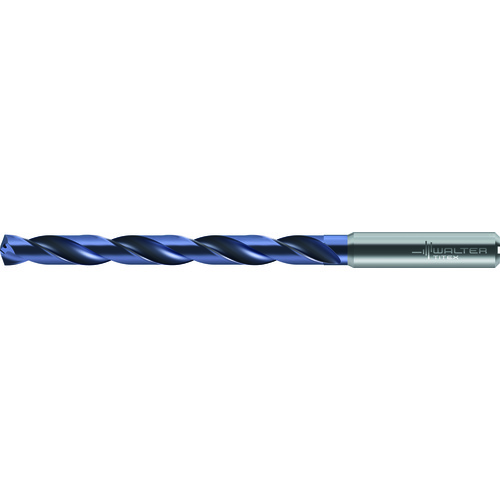

6.1 mm Dia. × 8 mm Shank × 66 mm Flute Length × 106 mm OAL, 8xD, 140°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill DC150-08-06.100A1-WJ30TA
| Drill Bit Size / Cutting Diameter (DC) | 6.1 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.2402″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.1 mm | Tool Type | Solid Carbide Drills |
| Length Group | 8xD | Grade | WJ30TA |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | DC150-WJ30TA |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 55 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 66 mm |
| Shank Type | Round | Overall Length (OAL) | 106 mm |
| Shank Standard | DIN 6535 HA |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0.099
