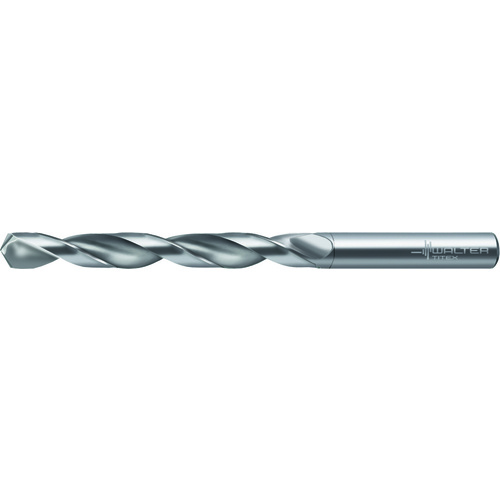

1 mm Dia. × 1 mm Shank × 12 mm Flute Length × 34 mm OAL, 8xD, 118°, 2xD Flute, External Coolant, DIN 338, Round Solid Carbide Drill A1263-1
A1263-1
| Drill Bit Size / Cutting Diameter (DC) | 1 mm | Shank Standard | DIN 338 |
| Decimal Equivalent | 0.0394″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1 mm | Cutting Edge Material | Carbide |
| Length Group | 8xD | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 1 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External | Series/List # | A1263 |
| Point Angle (SIG) | 118 Degrees | Usable Length (LU) | 10 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 12 mm |
| Shank Type | Round | Overall Length (OAL) | 34 mm |
Product Features
| Family Description | A1263-1 | Country of Origin | USA |
Shipping Info
Package Weight
0.9999
