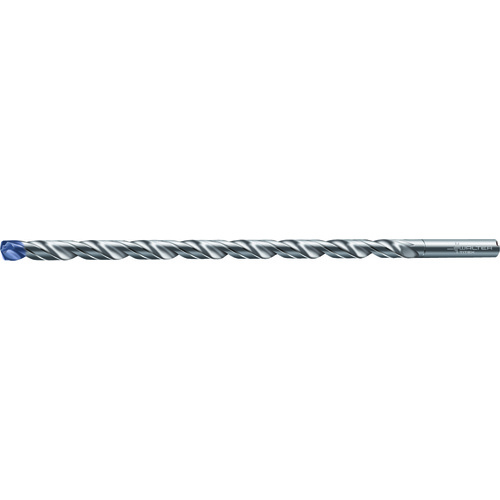

1/4″ Dia. × 0.315″ Shank × 6-3/8″ Flute Length × 7-7/8″ OAL, 140°, 2xD Flute, Coolant Thru, DIN 6535 HA, Round Solid Carbide Drill A6794TFP-1/4IN
SC Drill; 1/4″ Dia. × 0.315″ Shank Dia. × 7-7/8″ OAL × 6-3/8″ LCF ; 140 Degrees ; Series A6794TFP
Price: Log in For Price
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Shape | Solid Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ | Tool Type | Solid Carbide Drills |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | A6794TFP |
| Point Angle (SIG) | 140 Degrees | Usable Length (LU) | 5.94″ |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 6-3/8″ |
| Shank Type | Round | Overall Length (OAL) | 7-7/8″ |
| Shank Standard | DIN 6535 HA |
Product Features
| Family Description | A6794TFP-1/4IN | Country of Origin | China |
Shipping Info
LocalField10
0
Package Length
10.50000
Package Width
.70100
Package Height
.70100
Package Weight
0.196
