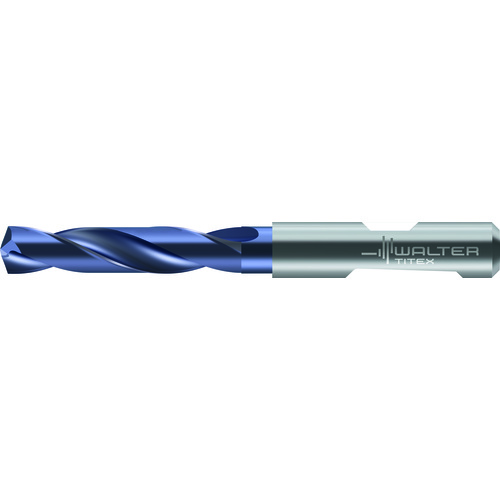

10.1 mm Dia. × 12 mm Shank × 55 mm Flute Length × 102 mm OAL, 3xD, 140 Degrees, No Coolant Exit, , Whistle Notch/Weldon Solid Carbide Drill DC150 WJ30RE
| Drill Bit Size / Cutting Diameter (DC) | 10.1 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | High Performance |
| Coating | TiAlN | Grade | WJ30RE |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | DC150 |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 40 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 55 mm |
| Functional Length (LF) | 55 mm | Overall Length (OAL) | 102 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 45 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | | Weldon | Whistle notch | | Body Material | Carbide |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
0.2000
