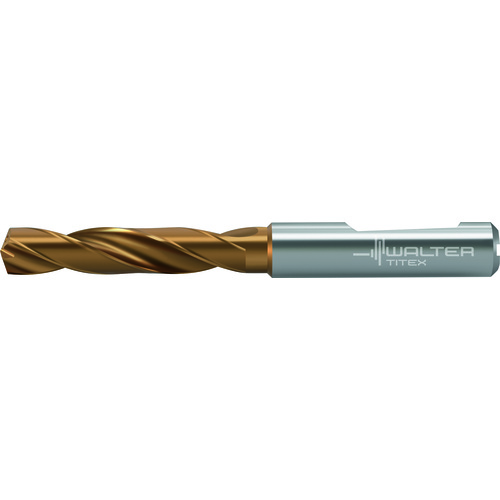

DC160-03-18.700F1-WJ30ET
SC Drill; 18.7 mm Dia. × 20 mm Shank Dia. × 50 mm OAL ; 140 Degrees ; 3xD ; Spiral Flute ; | TiAlN | TiSiAlCrN |
Price: Log in For Price
| Drill Bit Size / Cutting Diameter (DC) | 18.7 mm | Functional Length (LF) | 79 mm |
| Decimal Equivalent | 0.7362″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 18.7 mm | Cutting Edge Material | Carbide |
| Length Group | 3xD | Flute Type | Spiral |
| Coating | | TiAlN | TiSiAlCrN | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Overall Length (OAL) | 50 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | China |
Shipping Info
LocalField10
0
Package Weight
0.011
