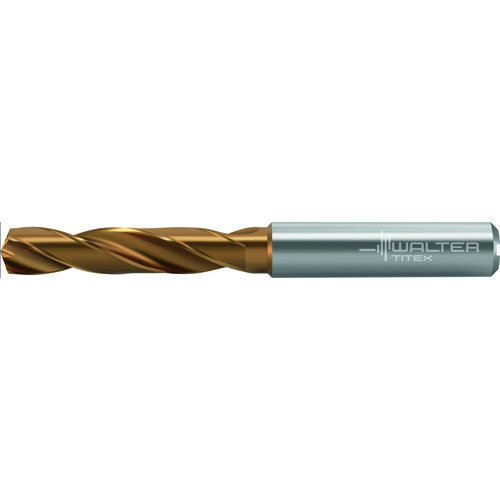

| Drill Bit Size / Cutting Diameter (DC) | 9/16″ | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5625″ | Flute Type | Spiral |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | | TiAlN | TiSiAlCrN | | Series/List # | DC160 |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Overall Length (OAL) | 1.89″ |
| Coolant Supply Property (CSP) | Coolant Thru | Flute Count (NOF) | 2 |
| Point Angle (SIG) | 140 Degrees | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 2.559″ |
Product Features
| Country of Origin | DE |
Shipping Info
Package Weight
.0150
