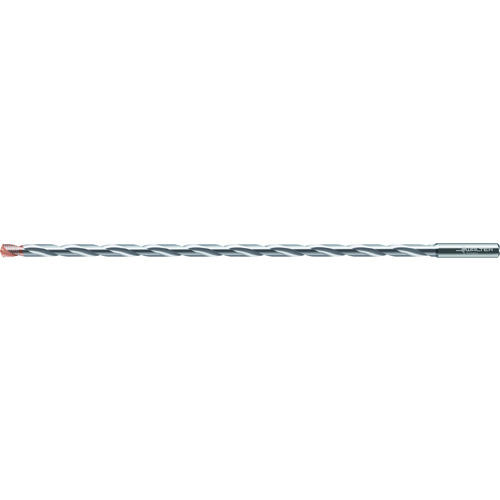

6.8 mm Dia. × 8 mm Shank × 228 mm Flute Length × 268 mm OAL, 30xD, 140 Degrees, Axial Inclined Exit, DIN 6535 HA, Cylindrical Solid Carbide Drill DC170 WJ30EJ
| Drill Bit Size / Cutting Diameter (DC) | 6.8 mm | Cutting Edge Material | Carbide |
| Length Group | 30xD | Tool Type | High Performance |
| Coating | TiAlN | Grade | WJ30EJ |
| Applicable Material | | Steel | Cast Iron | Hard Materials | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | DC170 |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 217 mm |
| Point Angle (SIG) | 140 Degrees | Length Chip Flute (LCF) | 228 mm |
| Functional Length (LF) | 228 mm | Overall Length (OAL) | 268 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Shank Length (LS) | 36 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shank Standard | DIN 6535 HA |
Product Features
| Country of Origin | France |
