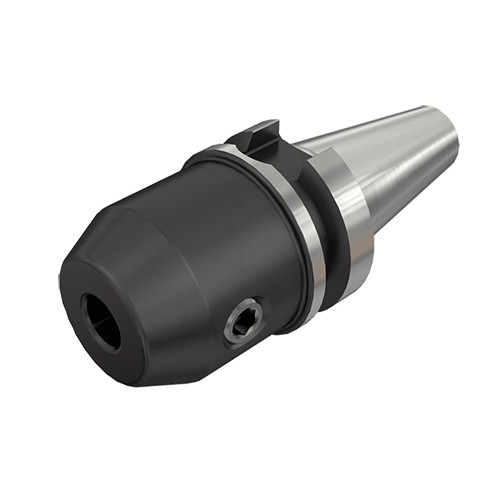

BT40 FC EM32X110
DIN1835 Form B endmills with BT MAS-403 face contact AD tapered shanks.
Price: Log in For Price

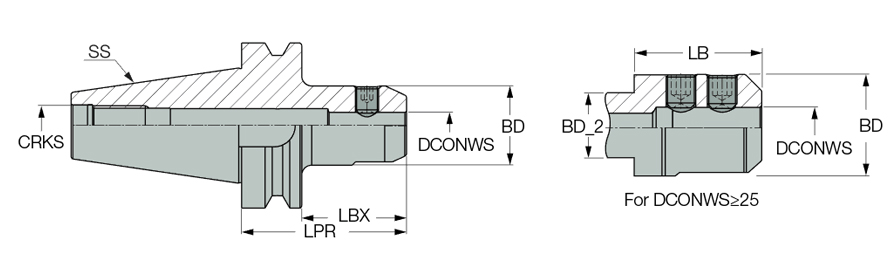

| Connection Size (CSI) | R8 | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Shank Size (SS) | 40 |
| Body Diameter (BD) | 71 mm | Tool Type | BT |
| Protruding Length (LPR) | 110 mm | Body Material | Steel |
| Overall Length (OAL) | 176.4 mm | Connection Code Machine Side (CCMS) | BT |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | DIN1835 Form B endmills with BT MAS-403 face contact AD tapered shanks. | Country of Origin | Italy |
| Remarks | For adaptation details, click on More Info. |
Shipping Info
Package Weight
6.680
