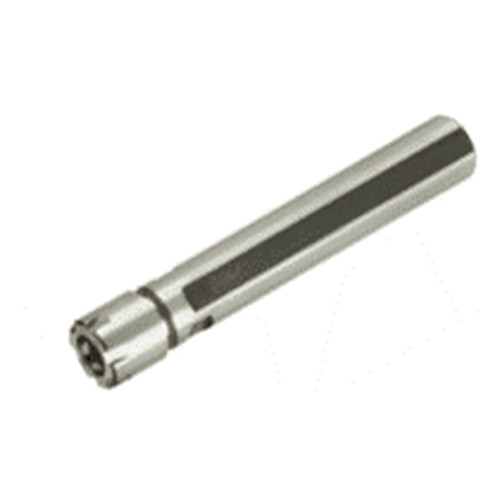

ST3/4X5.512 ER16 MF
Collet Chuck ; .750 Shank Size ; ER16 Connection Size ; 0.866″ Body Dia. ; 3/4″ Shank Dia. ; 0.022″ Min. Capacity ; 0.396″ Max. Capacity
Price: Log in For Price

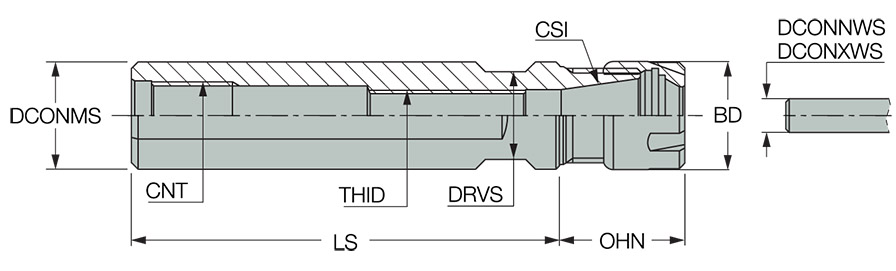

| Shank Size (SS) | .750 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022″ |
| Body Diameter (BD) | 0.866″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.396″ |
| Protruding Length (LPR) | 1.024″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Drive Size (DRVS) | 0.669″ |
| Shank Length (LS) | 5.512″ | Body Material | Steel |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.522
