S-MWLNR 16-4W
Int. Turning Tool ; 12″ OAL ; 0.91″ Shank Height ; 1″ Shank Dia. ; 1.22″ Min Bore Dia. ; Steel
Price: Log in For Price

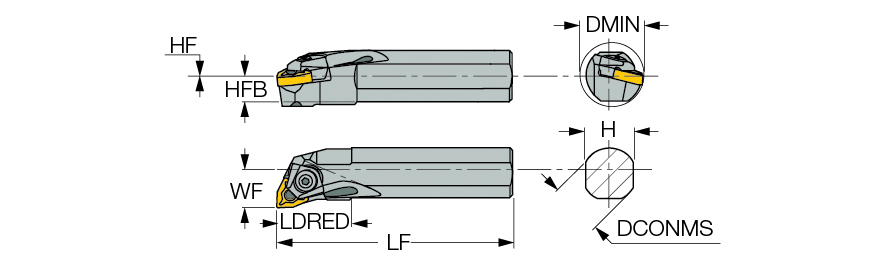

| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 12″ | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.38″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 0.91″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 0.64″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG 43.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.22″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External |
Product Features
| Family Description | Top-wedge-lock boring-bars carrying double-sided trigon inserts. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
2.363
