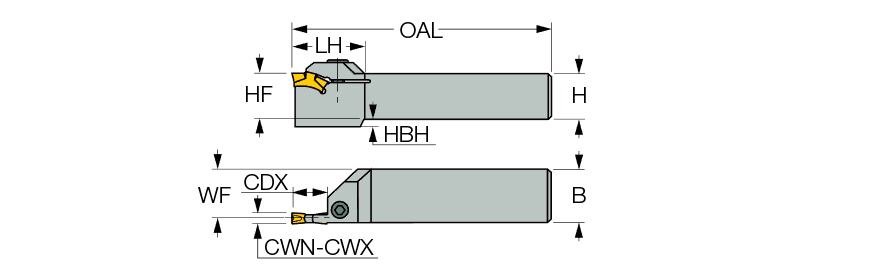

| Cutting Width Minimum (CWN) | 3 mm | Overall Length (OAL) | 125 mm |
| Cutting Width Maximum (CWX) | 3 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 7.5 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 18.7 mm | Measurement Type | Metric |
| Head Length (LH) | 30.5 mm |
Product Features

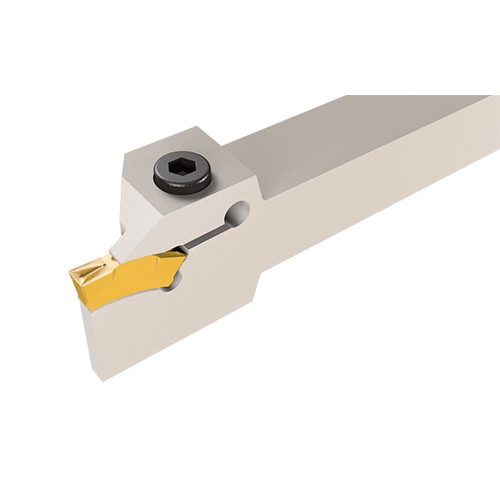

| Family Description | Holders for TOP-GRIP utility grooving and turning inserts. | Country of Origin | Israel |
| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
0.888
Related Documentation
Tools for multi-directional machining with support under the arc-shaped insert, for turning, grooving and parting with maximum stability.
