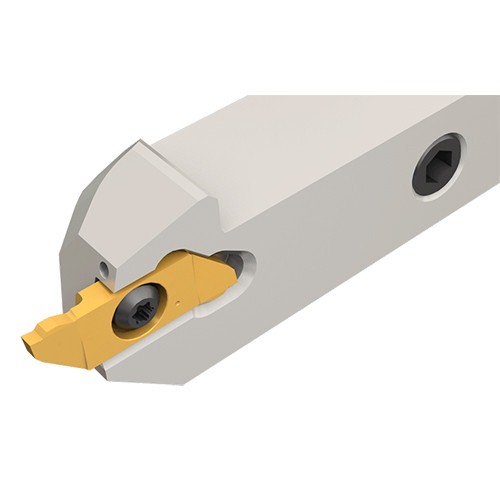

SCHR 9.5-22BF-JHP
Grooving and turning tools with high-pressure coolant channels with back and front clamping, for Swiss-type and automatic machines.
Price: Log in For Price

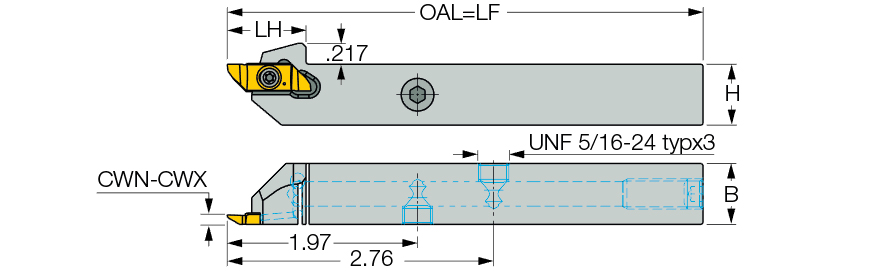

| Cutting Width Minimum (CWN) | 0.02″ | Overall Length (OAL) | 4.92″ |
| Cutting Width Maximum (CWX) | 0.1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.315″ | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Turning | Parting | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 3/8″ | Body Material | Steel |
| Shank Width (B) | 3/8″ | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 0.815″ | Measurement Type | Inch |
Product Features
| Family Description | Grooving and turning tools with high-pressure coolant channels with back and front clamping, for Swiss-type and automatic machines. | Country of Origin | Israel |
| Remarks | Note: Coolant ports of the left-hand tools are in the same position as those of the right-hand tools. |
Shipping Info
Package Weight
0.251
