GHMUL 31.7

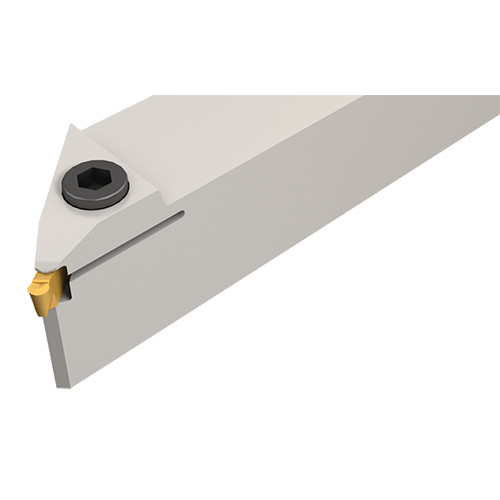

Grooving Toolholder; 1-1/4″ × 1-1/4″ Shank Size to 0.252″ Width × 7″ OAL ; Steel
Price: Log in For Price

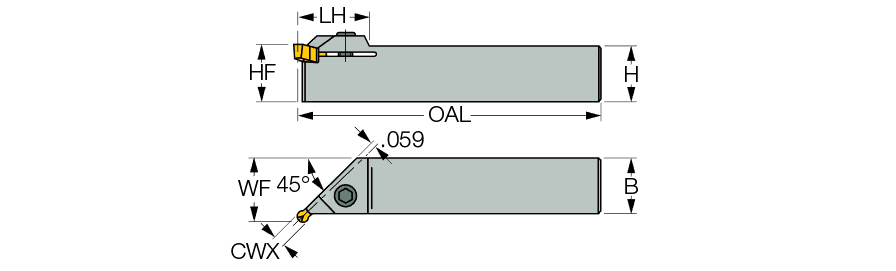

| Cutting Width Maximum (CWX) | 0.252″ | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 1-1/4″ | Application | | Ext. Undercut | |
| Shank Width (B) | 1-1/4″ | Body Material | Steel |
| Functional Width (WF) | 1.38″ | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 7″ |
Product Features

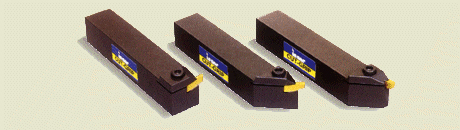

| Family Description | CUT-GRIP external holders for 45° undercutting. | Country of Origin | Israel |
| Remarks | For D>3.94, GIP/GIF inserts can be used (clearance types UN, D or G are not required). To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
LocalField10
0
Package Weight
2.94
