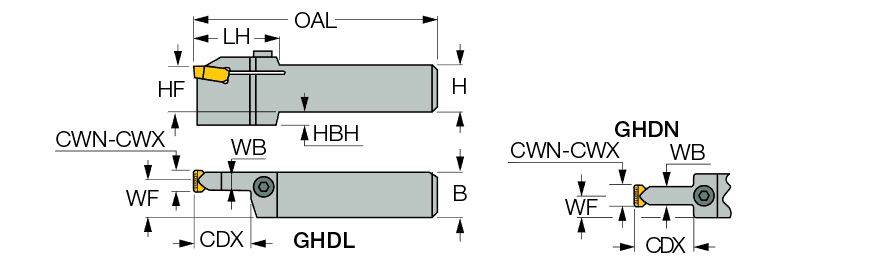

| Cutting Width Minimum (CWN) | 14.5 mm | Overall Length (OAL) | 170 mm |
| Cutting Width Maximum (CWX) | 17.4 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 45 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Pulley V Grooving | |
| Shank Height (H) | 40 mm | Body Material | Steel |
| Shank Width (B) | 40 mm | Tool Type | Wide Profiling Tools |
| Functional Width (WF) | 20 mm | Measurement Type | Metric |
| Head Length (LH) | 55.5 mm |
Product Features

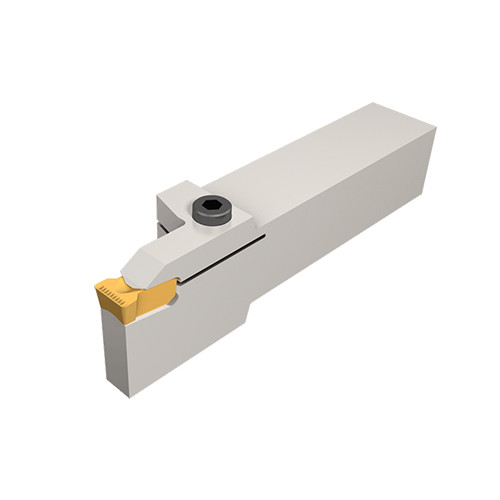

| Family Description | External tools for wide (12-17.4 mm) grooving inserts. | Country of Origin | Israel |
| Remarks | To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
4.034
