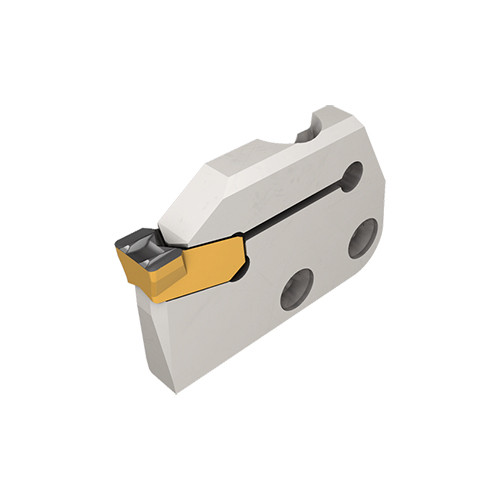

CGPAD 8L-T22
Grooving Toolholder ; 1.878″ OAL ; 0.252″ CW Min. ; 0.315″ CW Max. ; 0.866″ Max Depth ; Steel
Price: Log in For Price

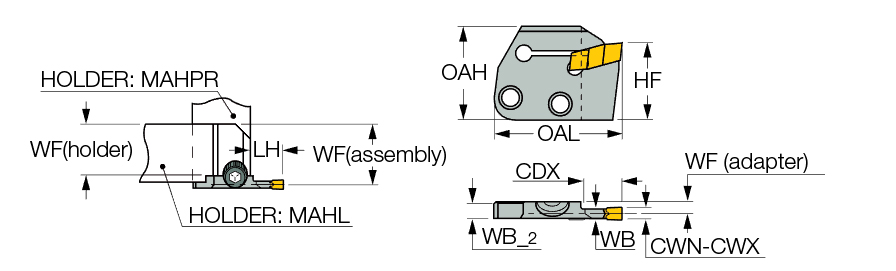

| Cutting Width Minimum (CWN) | 0.252″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.315″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 0.866″ | Body Material | Steel |
| Functional Width (WF) | 0.118″ | Tool Type | Turn-Groove Tools |
| Overall Length (OAL) | 1.878″ | Measurement Type | Inch |
Product Features
| Family Description | MODULAR-GRIP adapters for GIP/GIF groove-turn inserts. | Country of Origin | Israel |
| Remarks | For using TIP insert, toolholder seat needs to be modified according to insert profile to ensure clearance When using GIVR/L inserts, tool holder's seat needs to be modified |
Shipping Info
LocalField10
0
Package Weight
0.001
