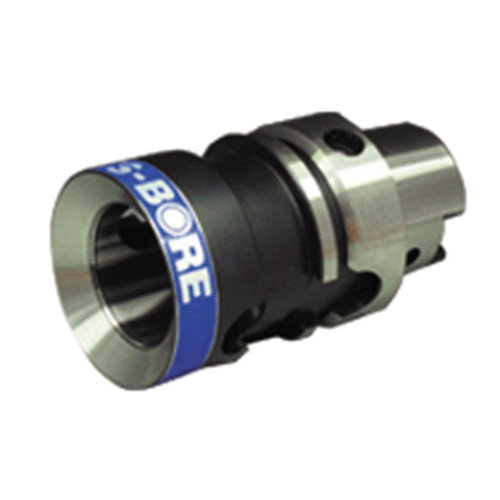

HSK A100 MB80
MB modular connection system with DIN 69893 HSK A taper shanks.
Price: Log in For Price

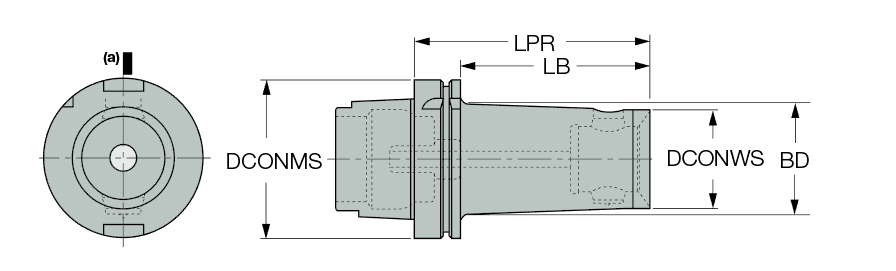

| Shank Size (SS) | 100 | Coolant Supply Property (CSP) | Coolant Thru |
| Protruding Length (LPR) | 3.465″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3.937″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 3.1496″ | Tool Type | HSK |
| Connection Size (CSI) | MB80 | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | MB modular connection system with DIN 69893 HSK A taper shanks. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Package Weight
8.060
