11EL 0.75 ISO IC908
External ISO Metric (DIN13 12-1986 class: 6g), laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general industry.
Price: Log in For Price
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

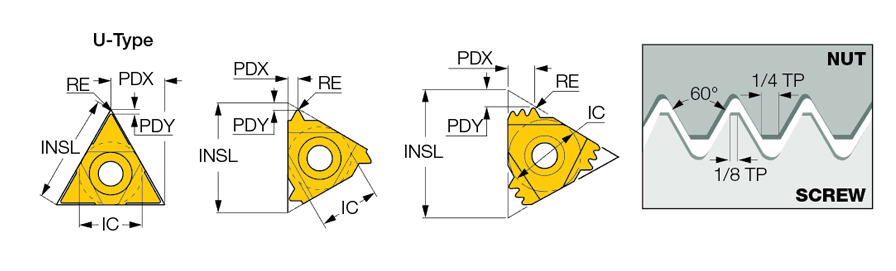

| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.433″ | Shape | 60° Triangle |
| Thread Pitch (TP) | 0.75 mm | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0031″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Cutting Position | External | Profile Distance EY (PDY) | 0.0236″ |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | |
Product Features
| Family Description | External ISO Metric (DIN13 12-1986 class: 6g), laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Application: general industry. | Country of Origin | Israel |

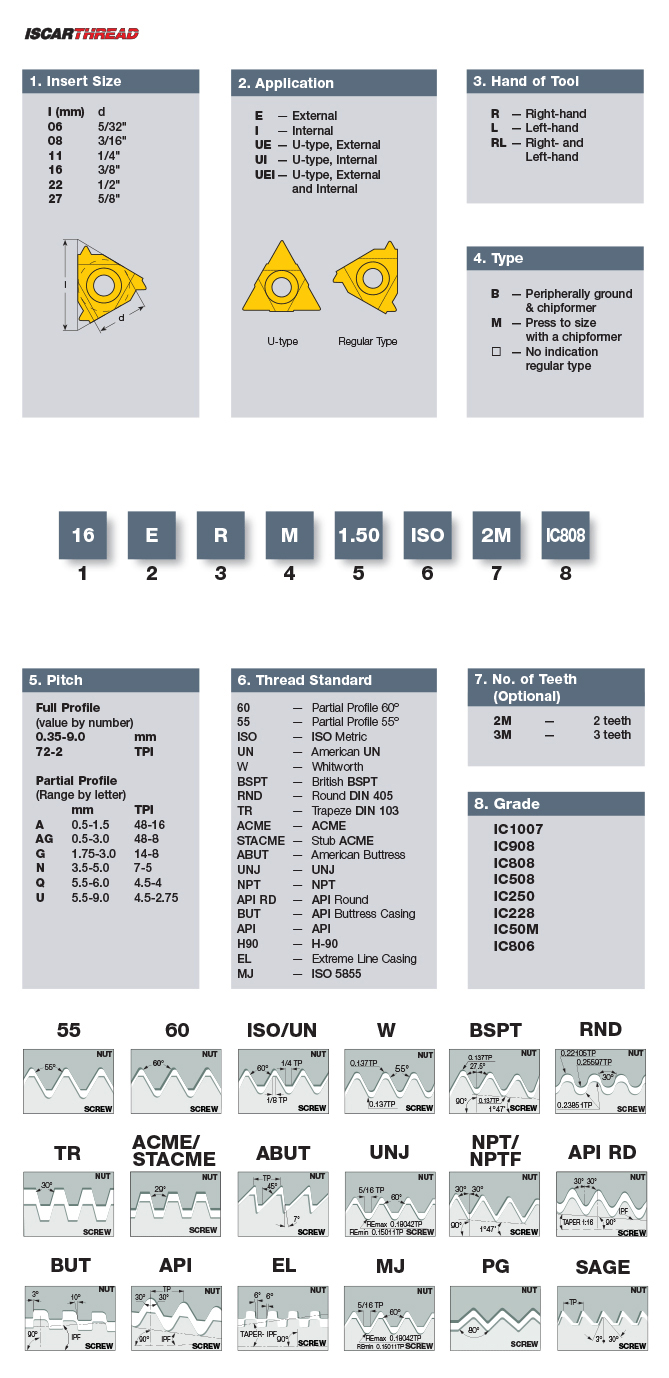

| Remarks | For Insert Identification System, see page For threading between walls use GRIP-type inserts TIP-ISO class: 6g |
Shipping Info
Package Weight
0.007
