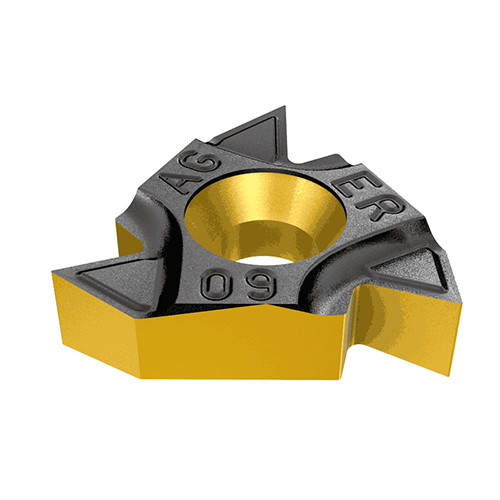

16ER AG 60 IC908
External 60° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - With a chipformer. Application: general applications
Price: Log in For Price
| Thread Standard | THFT | | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | 60° Triangle |
| Insert Length (INSL) | 0.649″ | Threads per Inch Minimum (TPIN) | 8 |
| Corner Radius (RE) | 0.0031″ | Threads per Inch Maximum (TPIX) | 48 |
| Grade | IC908 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | External | Thread Form Type (THFT) | VP60 |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | | Profile Distance EY (PDY) | 0.0472″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | External 60° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - With a chipformer. Application: general applications | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info For threaing between walls use GRIP-type inserts SCIR/L B/F -MTR/L, TIP-MT, GEPI-MT, TIPI-MT DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A |
Shipping Info
LocalField10
0
Package Length
4.00000
Package Width
1.50000
Package Height
.50000
Package Weight
0.015
