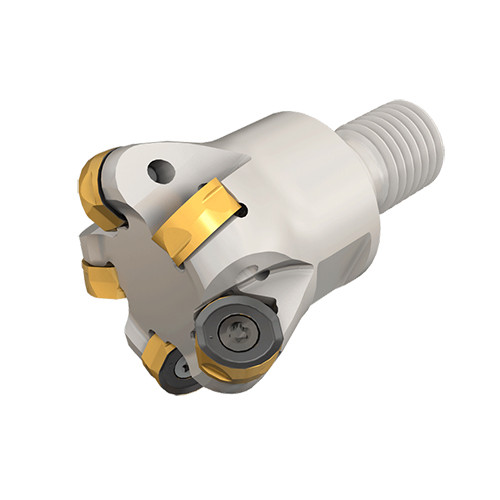

H400 ER D32-5-M16-10
Endmills with FLEXFIT threaded connection carrying double-sided inserts with four radius cutting edges (HELIDO ROUND H400 LINE).
Price: Log in For Price

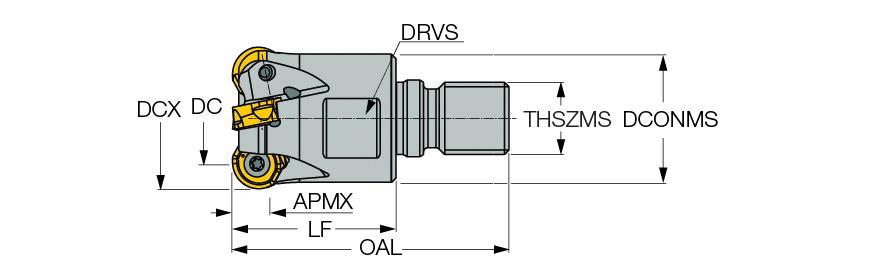

| Cutting Diameter (DC/DCX) | 0.866″ | Tool Type | Round corner cutters |
| Cutting Diameter (DC) | 0.866″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 5 | Drive Size (DRVS) | 0.984″ |
| Depth of Cut Maximum (APMX) | 0.295″ | Body Diameter (BD) | 0″ |
| Overall Length (OAL) | 2.362″ | Corner Radius (RE) | 0.1969″ |
| Ramping Angle Maximum (RMPX) | 3.8 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.165″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | H400 RNHU 1004-ML | Body Material | Steel |
| Weight of Item (WT) | 0.38 Lbs | Connection Code Machine Side (CCMS) | FLEXFIT |
| Functional Length (LF) | 1.378″ | Cutting Diameter Maximum (DCX) | 1.26″ |
Product Features
| Family Description | Endmills with FLEXFIT threaded connection carrying double-sided inserts with four radius cutting edges (HELIDO ROUND H400 LINE). | Country of Origin | Israel |
| Remarks | When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
0.529
